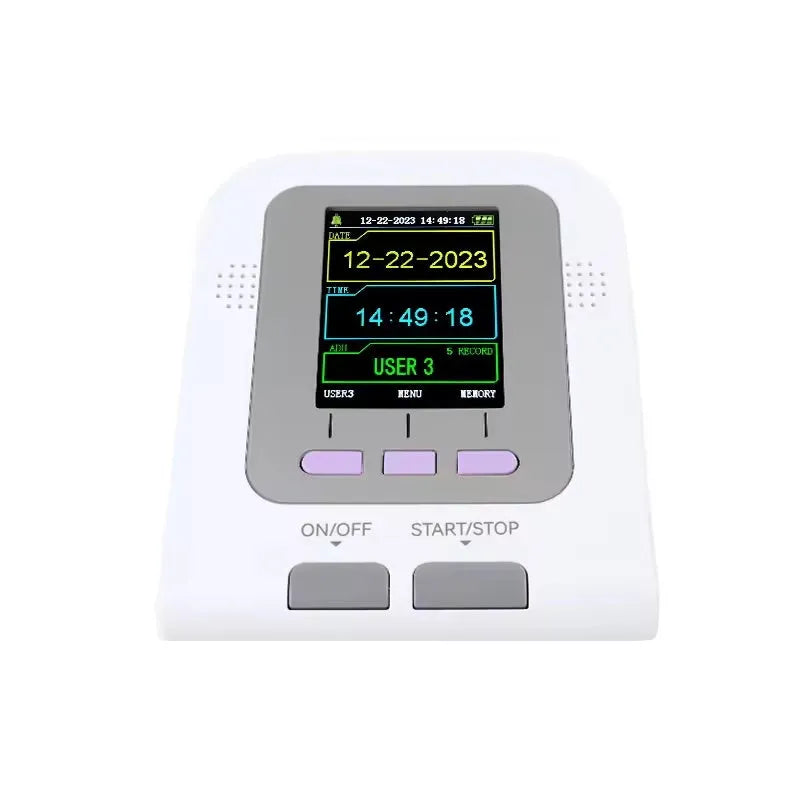

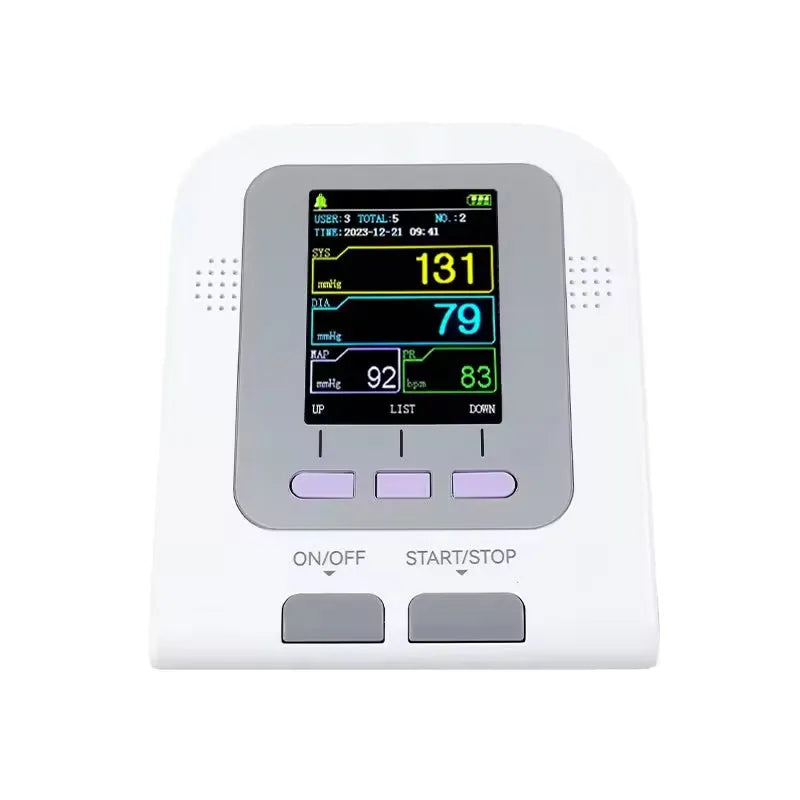

CONTEC08A Veterinary Digital Blood Pressure Monitor: Automatic Measurement with 3 Cuff Sizes

The CONTEC08A-VET is an electronic sphygmomanometer designed specifically for measuring blood pressure in animals. This device integrates full-automatic measurement, a high-definition colour LCD display, and data recording into one compact unit, making it suitable for a range of veterinary applications. From routine checks for family pets to clinical use in animal hospitals, clinics, and farm settings, it provides a practical tool for monitoring animal health. Its operation is centred on ease of use, with a one-touch system that employs an oscillometric multistep deflation method, noted for good repeatability. The device also incorporates practical features like a data storage capacity of 100 groups, a physiological alarm with configurable limits, and support for multiple cuff sizes to accommodate different animal physiques.

Features and Construction

The CONTEC08A-VET combines several key features aimed at reliable and user-friendly veterinary blood pressure monitoring. Its construction adheres to medical device standards, classified as a Class II, type BF applied part, indicating a degree of safety for patient contact. The design focuses on delivering clear information and straightforward operation in veterinary environments.

Material and Build

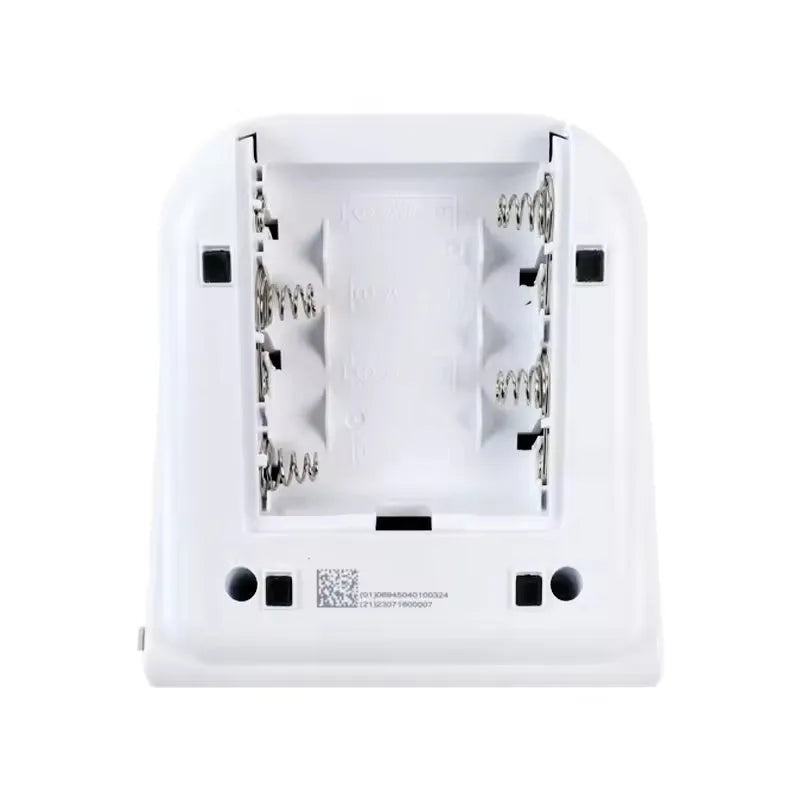

The device is built with electronic components housed within a casing, resulting in dimensions of 130mm in length, 110mm in width, and 80mm in height, and a weight of 300 grams without batteries. This portable size facilitates use in various locations. The key interface is a 2.8-inch high-definition colour LCD screen, which provides strong visibility for reading measurements and navigating menus. The device is powered either by four AA batteries, offering portability, or via a 5V or 6V power adapter for extended stationary use. A short-time power storage function maintains the clock during battery replacement.

Size and Practical Fit

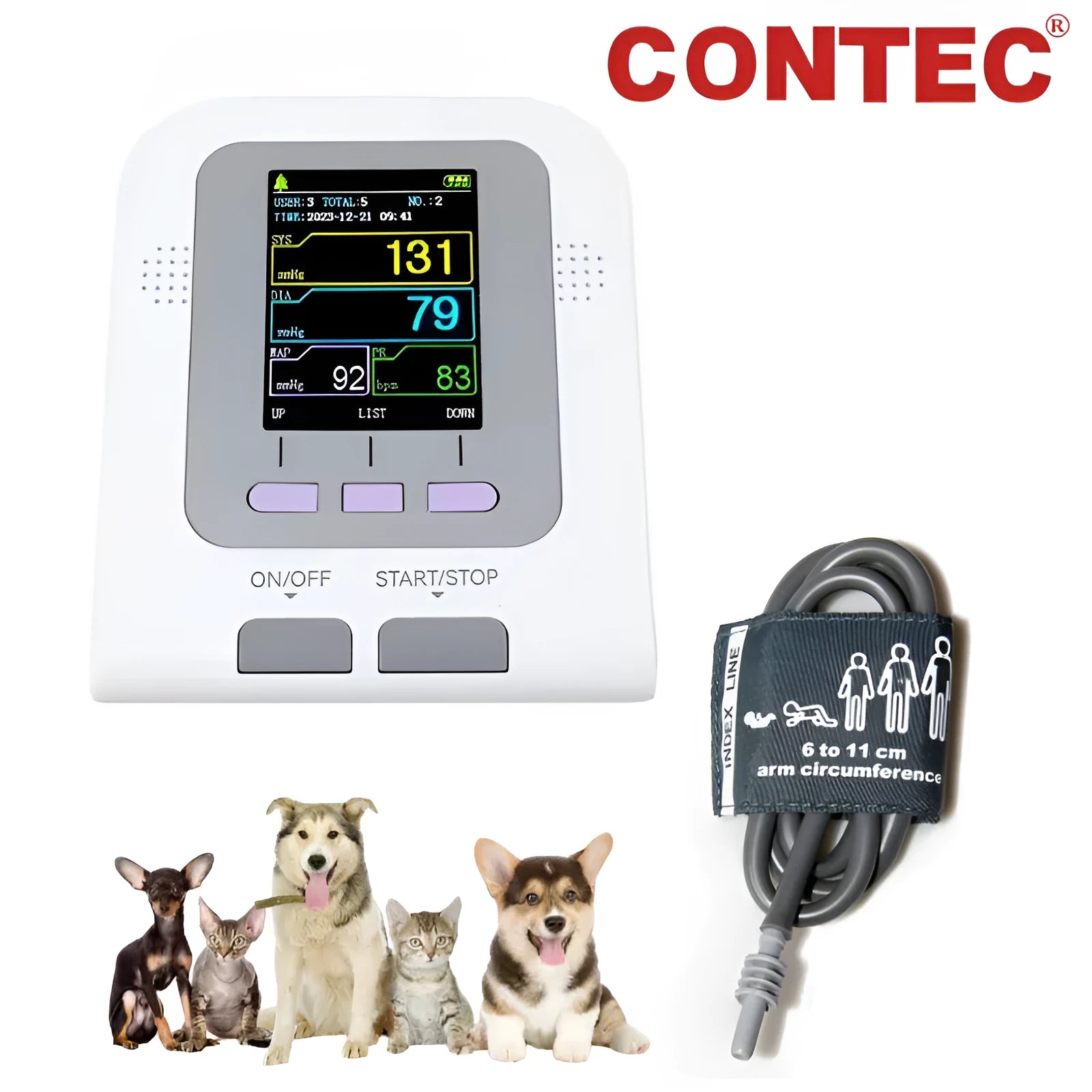

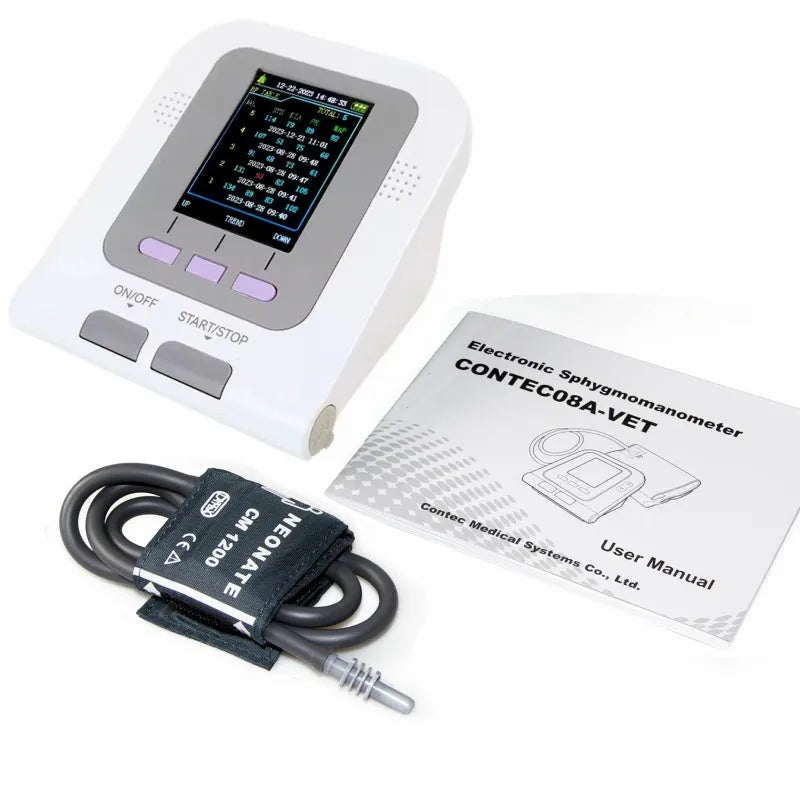

A central aspect of its veterinary application is the inclusion of three cuff modes: large, medium, and small. This allows the user to select a corresponding cuff based on the animal's body type and limb size, which is crucial for obtaining an accurate blood pressure reading. The cuff is an essential accessory supplied with the monitor. The device's physical characteristics ensure it can operate within an environmental temperature range of 5°C to 40°C and relative humidity of 15% to 80%, covering typical clinical and indoor settings.

Uses and Placement

This monitor is intended for professional and care-based measurement of animal blood pressure. Its design supports both routine wellness checks and more focused clinical monitoring.

Event or Professional Use

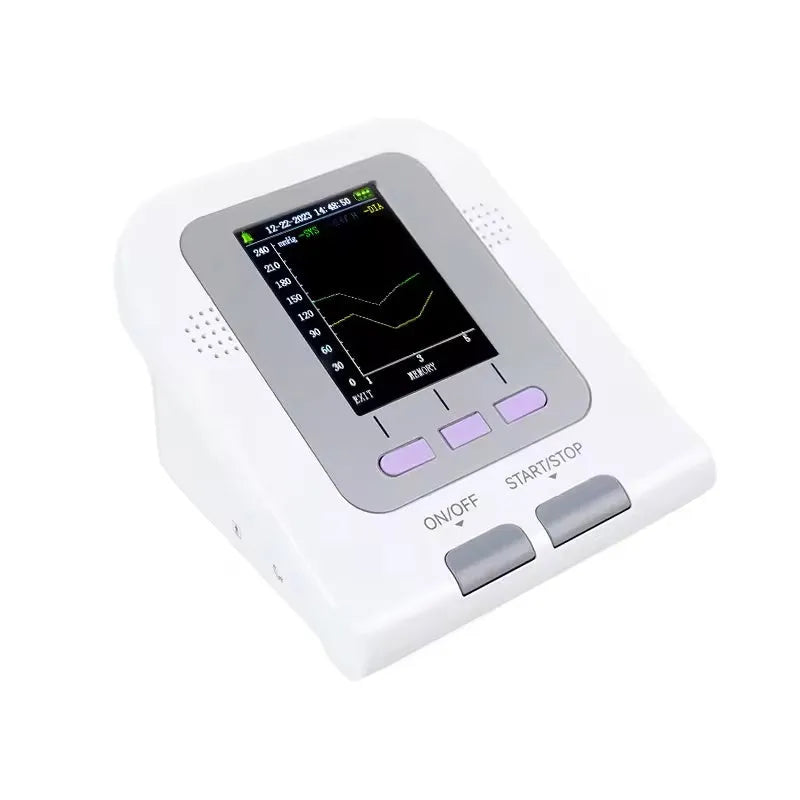

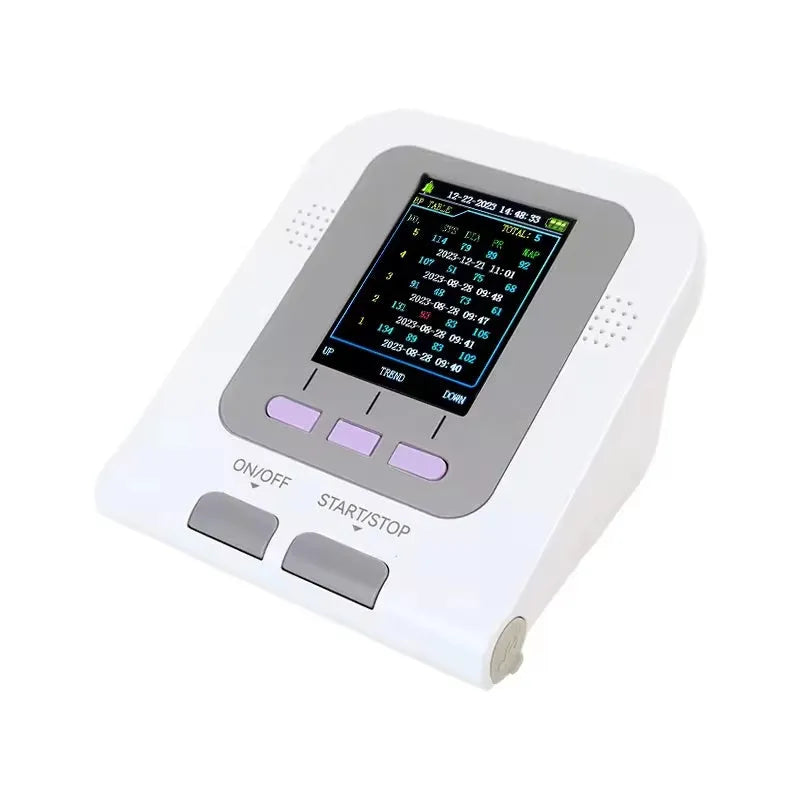

In professional settings such as animal hospitals, veterinary clinics, or farms, the CONTEC08A-VET serves as a diagnostic and monitoring tool. The ability to store up to 100 groups of data, each with a date and time stamp, supports patient record-keeping and trend analysis through the 'data list' and 'trend chart' review interfaces. The physiological alarm function, where high and low limits can be set, provides an immediate audible and visual prompt if a reading is outside the normal range, aiding in rapid assessment during procedures or recovery monitoring.

Everyday Home Use

For pet owners managing chronic conditions or for breeders conducting regular health checks, the device offers a manageable way to monitor blood pressure at home. The one-touch automatic operation simplifies the process, and the clear 'big font' display mode makes results easy to read. The availability of three cuff sizes means it can be used on a variety of pet species and sizes. The automatic power-off function helps conserve battery life during intermittent home use.

Benefits and Buying Value

The value of the CONTEC08A-VET lies in its specific design for animals, its data management capabilities, and its operational reliability.

Reuse and Low Maintenance

The device is built for repeated use across many patients. The data storage function allows for long-term tracking without external notebooks. Maintenance is minimal: the main considerations are battery replacement or using the power adapter, and storing the device within its specified temperature range (-20°C to +55°C) when not in use. The cuffs can be cleaned according to general veterinary hygiene practices to prepare for the next patient.

Why Choose This Product

This monitor provides a dedicated veterinary solution where human-oriented devices may not be suitable. The oscillometric measurement method offers good repeatability, and the automatic multistep deflation is designed for consistency. Key differentiators include the choice of three cuff sizes for proper fit, the substantial storage of 100 data groups, and the configurable alarm function for safety monitoring. The ability to display results in either KPa or mmHg units caters to user preference or regional standards. It represents a consolidated tool for animal blood pressure assessment in a single, portable package.
