Industrial camera monocular lens with 130 times magnification range and variable working distance for machine vision systems

This industrial monocular lens delivers essential optical capability for machine vision and inspection systems requiring adjustable magnification across different working distances. With its 0.1-1.3X magnification range translating to approximately 10-130x on-screen display, it accommodates diverse inspection scenarios from microscopic component examination to broader surface assessment. The 60mm-300mm working distance provides substantial flexibility in camera placement relative to inspection subjects, while the consistent 1:11 scaling ratio ensures maintained image proportionality throughout magnification adjustments. Designed for integration with industrial camera systems, this lens focuses on delivering clear, magnified imagery for quality control, measurement, and automated inspection applications across manufacturing, electronics, and precision engineering sectors.

Features and Construction

This industrial lens combines specific optical specifications with robust physical construction to meet the demands of machine vision environments. The combination of magnification range, working distance, and scaling ratio provides a versatile optical solution, while the aluminium housing offers protection against typical industrial conditions.

Material and Build

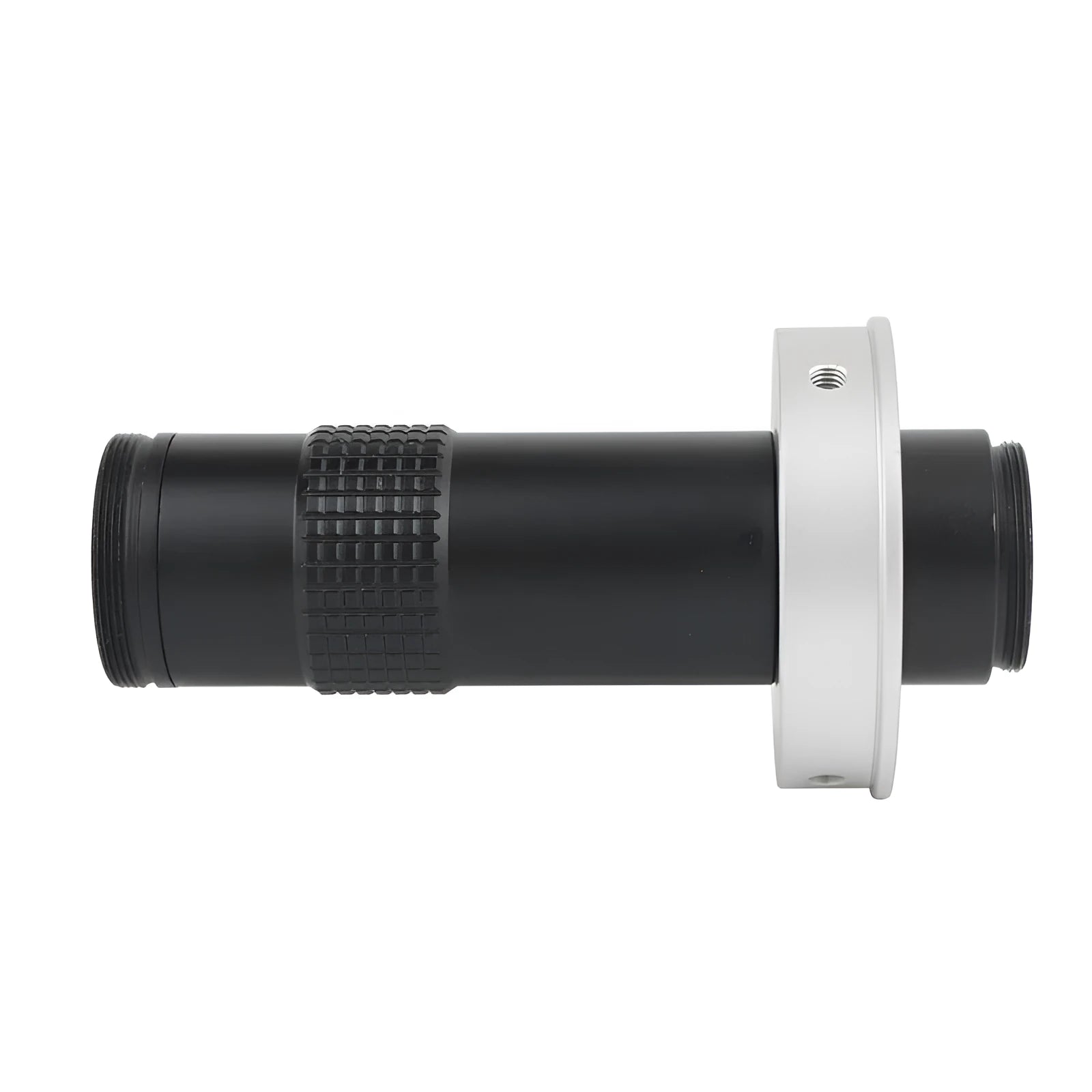

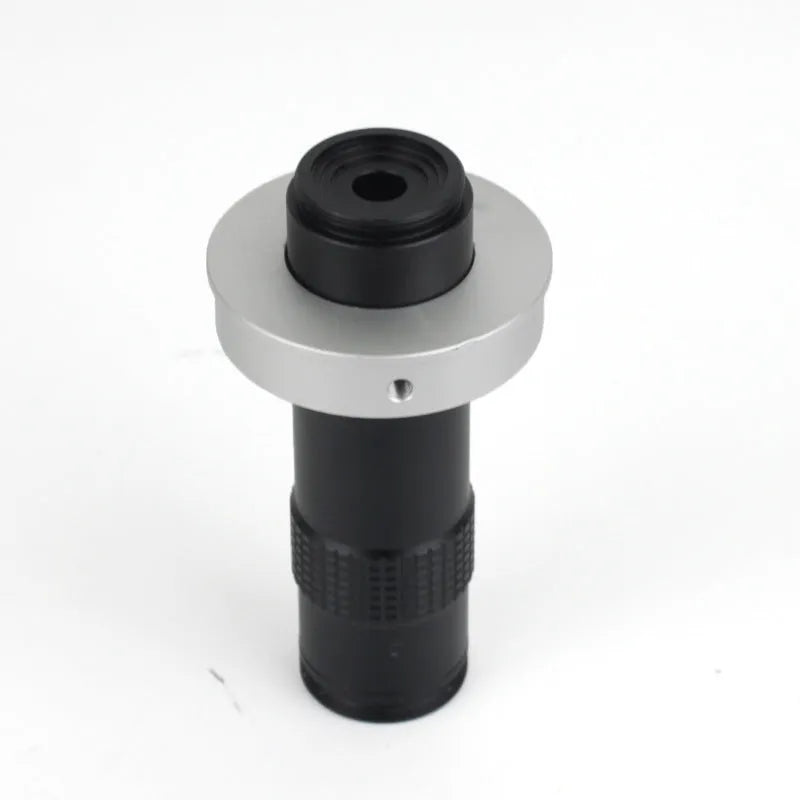

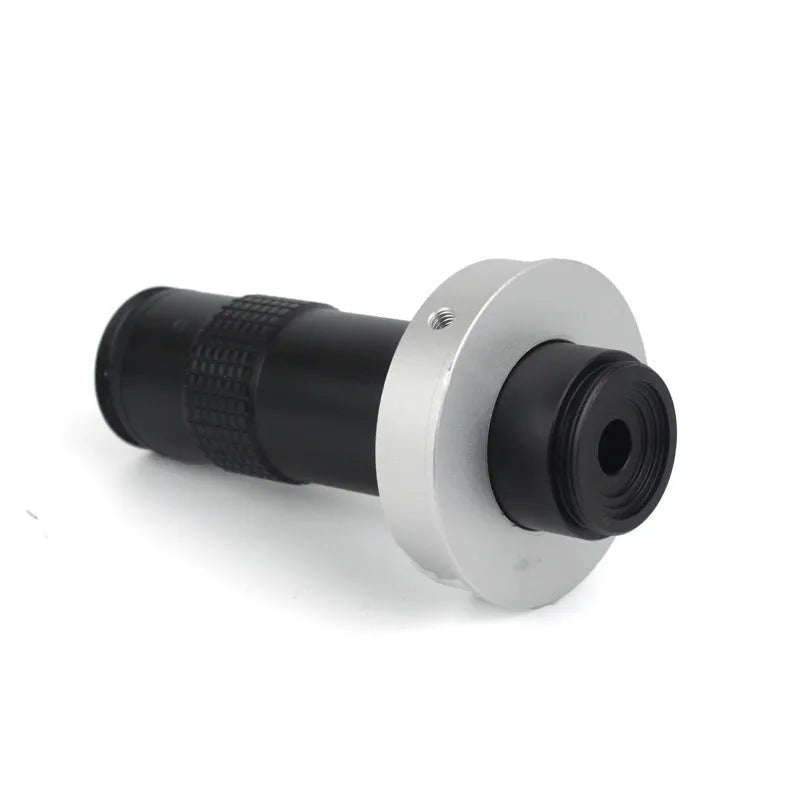

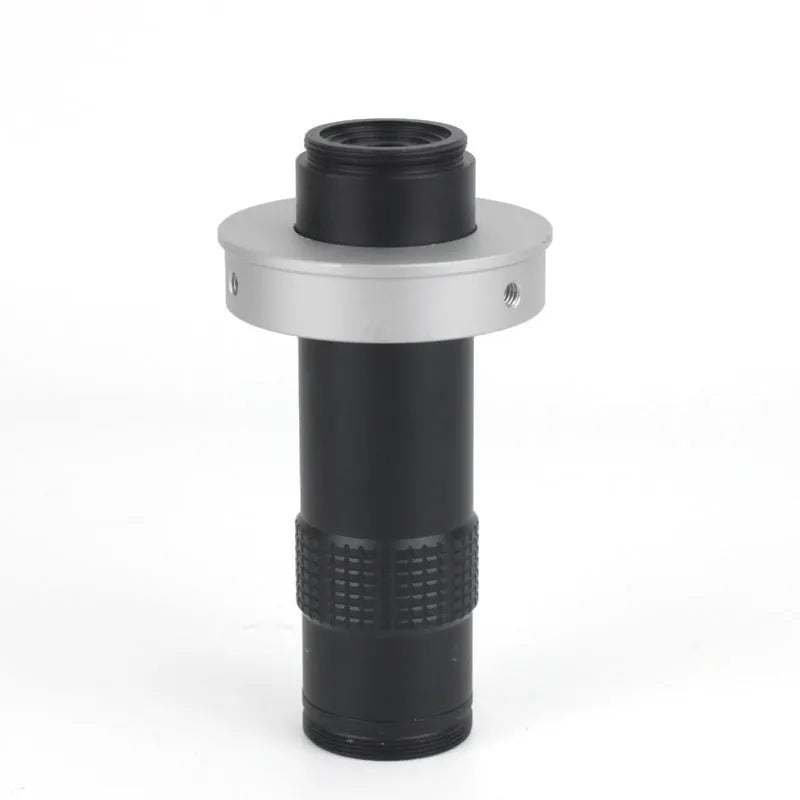

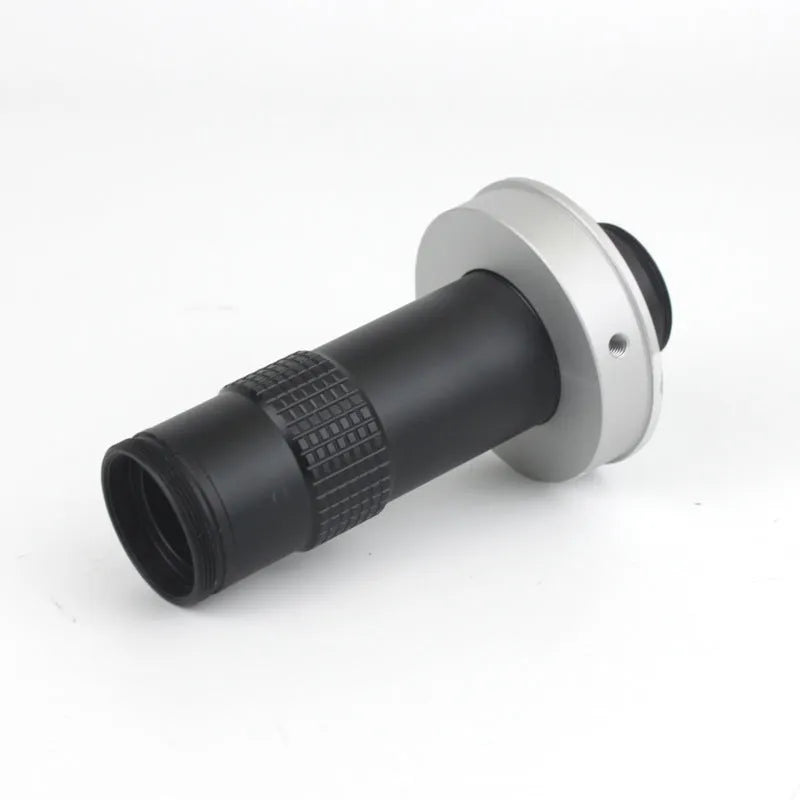

The lens features a black anodised aluminium housing that provides both structural rigidity and corrosion resistance suitable for industrial settings. This material choice offers protection against environmental factors while maintaining precise optical alignment. The 30mm diameter × 84mm length dimensions create a compact yet substantial form factor that integrates with standard industrial camera mounting systems. The anodised finish contributes to surface durability while minimising light reflection that could interfere with imaging performance.

Size and Practical Fit

The lens dimensions of 30mm diameter and 84mm length create a proportional form factor that balances optical performance with practical integration considerations. These measurements ensure compatibility with various industrial camera housings and mounting configurations. The field of view specification ranges from 8mm×4.5mm at maximum magnification to 40mm×33mm at minimum magnification, allowing users to select appropriate magnification levels based on their specific inspection area requirements. This range accommodates both detailed examination of small components and broader assessment of larger surfaces or assemblies.

Uses and Placement

The lens specifications support diverse industrial applications where precise visual inspection and measurement are required. The combination of magnification range and working distance flexibility makes it suitable for various manufacturing and quality control scenarios.

Event or Professional Use

In professional manufacturing environments, this lens supports quality inspection of electronic components, precision mechanical parts, and assembled products. The approximately 10-130x on-screen magnification range allows technicians to examine solder joints, surface finishes, dimensional tolerances, and material defects. The 60mm-300mm working distance accommodates different production line configurations, allowing camera placement that doesn't interfere with manufacturing processes while maintaining necessary inspection proximity.

Everyday Home Use

While designed primarily for industrial applications, this lens could support advanced hobbyist projects involving detailed inspection of small objects, model components, or repair work requiring magnification. The variable working distance provides flexibility in setting up inspection stations for detailed work on electronics, jewellery, or mechanical repairs. However, users should note that this lens requires integration with compatible industrial camera systems rather than consumer photography equipment.

Benefits and Buying Value

This industrial lens offers practical advantages through its combination of optical specifications and durable construction. The value proposition centres on providing reliable magnification capability for inspection systems without unnecessary complexity.

Reuse and Low Maintenance

The anodised aluminium housing contributes to long-term usability in industrial environments by resisting corrosion and maintaining structural integrity. The single-lens configuration without complex moving parts minimises maintenance requirements while the specified optical performance remains consistent over time. Proper handling within the specified working distance parameters helps preserve optical alignment and image quality through extended use periods.

Why Choose This Product

This lens offers a balanced combination of magnification range, working distance flexibility, and industrial-grade construction. The approximately 10-130x on-screen magnification covers most detailed inspection requirements while the 60mm-300mm working distance provides installation flexibility. The 1:11 scaling ratio ensures consistent image proportions, and the aluminium housing offers durability for industrial applications. For systems requiring reliable magnification without specialised optical accessories, this lens provides core functionality in a straightforward package.
