1.3-Inch IPS LCD Module: A Vivid 240x240 Colour Display for Electronics Projects
Integrating a clear, colour visual interface into custom electronics requires a display module that balances vivid image quality with flexible connectivity. This 1.3-inch plug-in display meets that need with its high-definition IPS (In-Plane Switching) screen, which provides more vibrant and accurate colours than conventional TFT LCD technology. With a square 240x240 pixel resolution and an adjustable viewing direction, it offers a versatile solution for data readouts, instrument panels, or interactive project builds. Its compact physical design, centred around the reliable ST7789 driver chip, and support for industrial operating temperatures make it a practical choice for hobbyists and developers seeking a robust display component.
Features and Construction

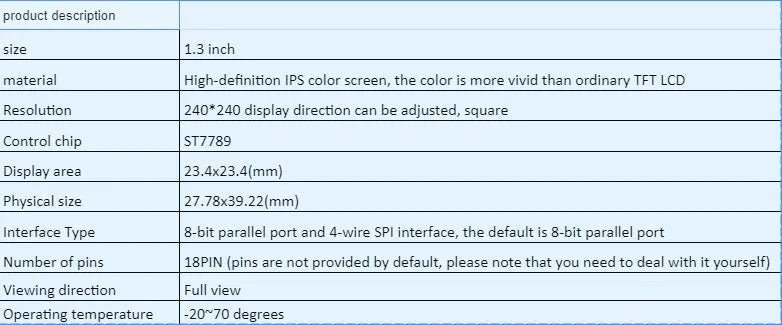

This display module is built around specific technical specifications that define its performance and integration capabilities. The core components are selected for clarity and reliability, providing a solid foundation for various applications.
Material and Build

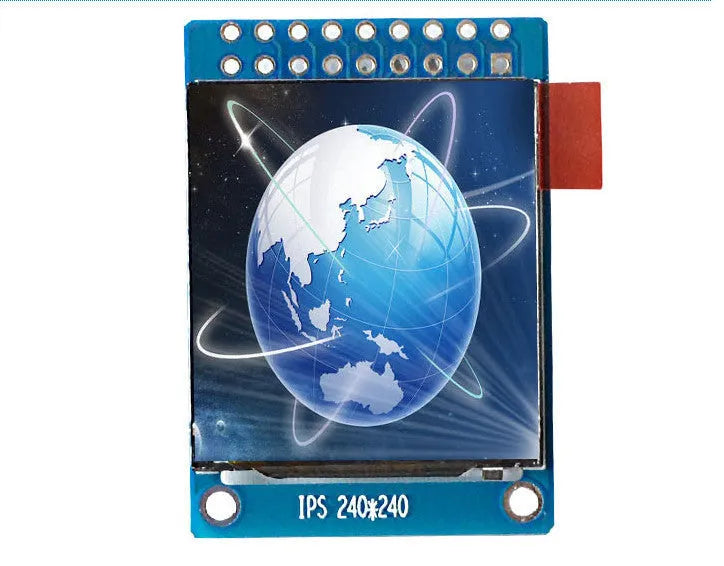

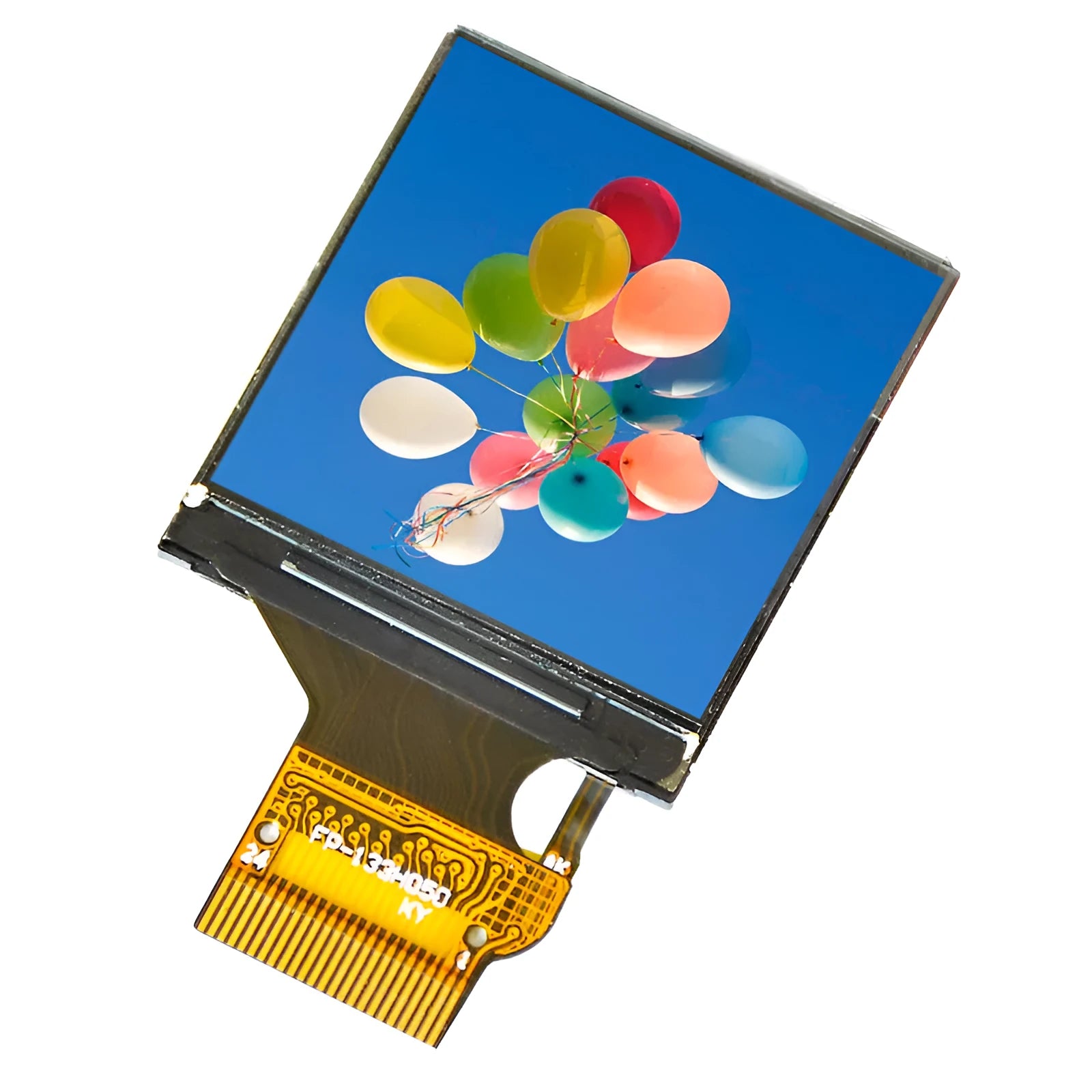

The module is centred on a high-definition IPS colour screen. This in-plane switching technology is known for delivering wider viewing angles and more consistent colour reproduction compared to older Twisted Nematic (TN) or standard TFT screens, resulting in a visually sharper image for the end user. The screen is driven by an ST7789 control chip, a common integrated circuit in small displays known for its efficiency in handling colour graphics. The assembly is designed as a plug-in module with an 18-pin connector, though it is important to note that the physical pins for this connector are not included and must be procured separately for installation.
Size and Practical Fit

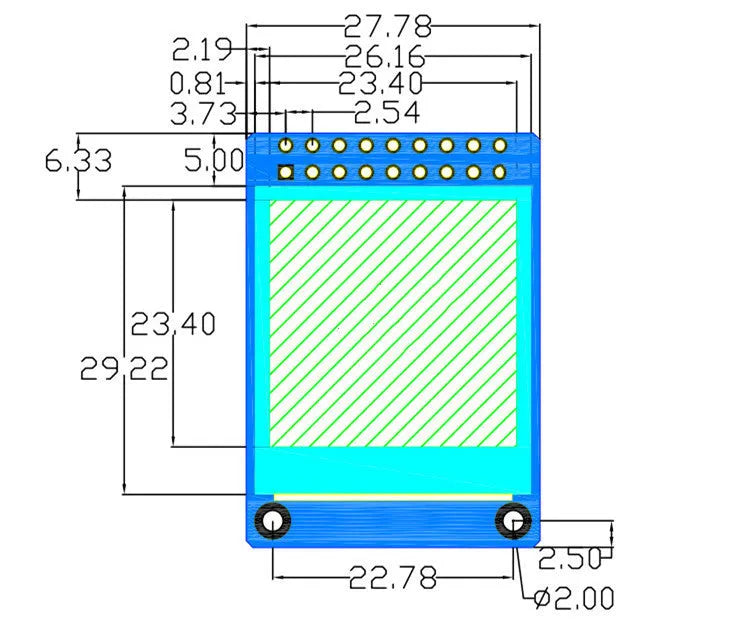

The display's viewable area measures 23.4mm by 23.4mm, presenting a perfectly square active screen. The entire module's physical footprint is slightly larger at 27.78mm by 39.22mm, which includes the bezel and connector housing. This compact size allows it to fit into constrained spaces within prototypes or finished products. The square aspect ratio and 240x240 native resolution provide a balanced canvas for icons, graphs, or text without stretching or cropping, which is particularly useful for symmetrical user interface designs.
Uses and Placement
The module's specifications lend themselves to a range of practical applications, from professional prototyping to hobbyist creations. Its interface options and operational resilience broaden its potential use cases.
Event or Professional Use
In professional or industrial environments, this display can serve as a status panel or data readout for monitoring equipment. Its ability to operate across a wide temperature range from -20 to +70 degrees Celsius makes it suitable for applications where ambient conditions may vary, such as in enclosed instrumentation or field-deployable devices. The availability of both 8-bit parallel and SPI interfaces allows engineers to select the communication protocol that best fits their existing system architecture, facilitating easier integration into larger control systems or custom PCBs.
Everyday Home Use

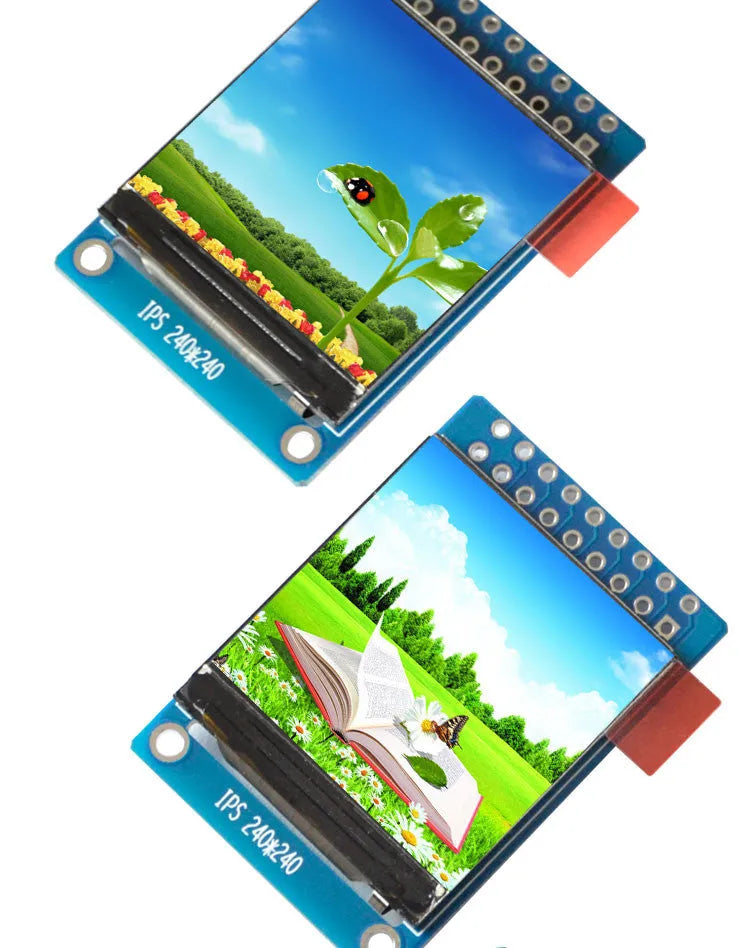

For electronics hobbyists and makers, this module is an excellent choice for personal projects like custom weather stations, smart home controllers, retro gaming consoles, or DIY digital clocks. The adjustable display orientation means the screen can be mounted in any rotational configuration—portrait, landscape, or inverted—to suit the project's physical layout. The vivid IPS colours enhance the user experience for any application where visual feedback is important, making readings clearer and interfaces more engaging compared to monochrome or lower-quality colour displays.
Benefits and Buying Value
Choosing this display module brings several practical advantages based on its stated specifications. The value lies in its technical attributes and the flexibility they provide to the user.
Reuse and Low Maintenance
As a standalone component, the module is designed for integration into broader systems and can be repurposed across multiple projects if needed. There are no complex consumables or parts requiring regular replacement. Maintenance is minimal, contingent on operating within the specified environmental limits. The robust temperature rating suggests a design that can withstand repeated thermal cycles without degradation, contributing to its potential longevity in stable applications.
Why Choose This Product
The decision to select this module hinges on its combination of IPS screen quality, dual-interface support, and compact square form factor. It provides a tangible upgrade in colour performance over basic TFT displays, which can be crucial for projects where visual clarity impacts usability. The explicit support for two common digital interfaces (8-bit parallel and 4-wire SPI) offers a degree of future-proofing, as it can adapt to different microcontrollers or development boards. For anyone requiring a small, reliable colour display with confirmed specifications, this module presents a clearly defined and practical component.
